Door access control system for home and commercial building use in Pakistan.
Automate your home or office and never worry about forgetting keys again with the smart keypad. The access control system includes a keypad for your front door, outdoor access gate, or indoor pet door. The WIFI keypad door access system allows you to control your entire home or office remotely from your phone or tablet.

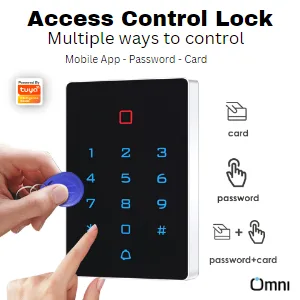

You can use multiple ways to unlock the security doors
- RFID Cards Unlock
- Keypad Passwords
- Mobile Application (Android / iOS)
- Cloud Attendance system

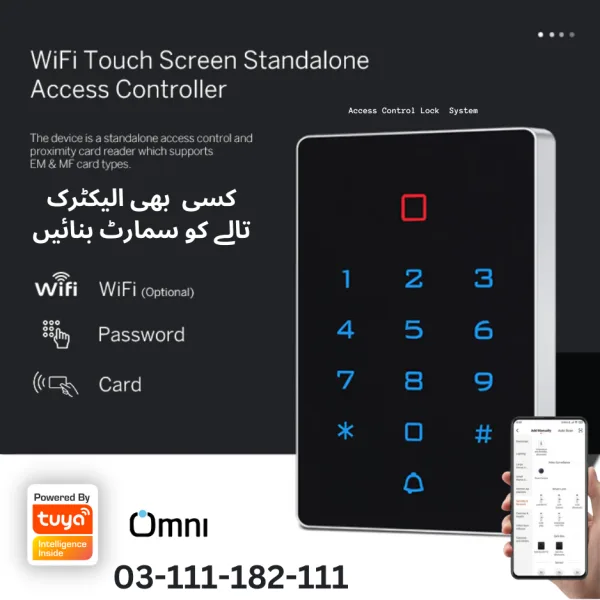

Convert any magnetic door lock system to smart and control with mobile over WiFi.
attach the system to your existing electronic door lock or magnetic door lock and control them over Wifi, open doors for employees and guests from the mobile application.
Features:
- High quality and high security.
- Sensitively and respond quickly.
- 2000 standard users optional.
- Support card, password, password plus card to open the door
- With doorbell button
open the lock from anywhere in the world with your mobile
- Generate temporary password for Airbnb and security access
- Classical Appearance with useful function.
- Professional design for Home and Office.
- Support one-door
- Can be used as a stand-alone keypad
- Doesn’t need to connect to the computer, can work alone
- Application: Home/ hotel/ office/ apartment/ factory, etc
- with led backlight Touch Screen
- Anti-disassembly Alarm Function
Smart Access controller keypad can be used for following
- Home
- Apartment
- Airbnb
- Hotel
- cash room security door
- User Capacity:200 user
- Dimension: 73*115*16mm(L/H/W)
- Working Frequency: 125KHz
- Working Voltage: DC12V
- Working Current: <100mA
- Reading Distance: 0-10cm
- Relative Humidity: 20%-90%
note：Enter * 999999 # 73 # to enter wifi pairing mode

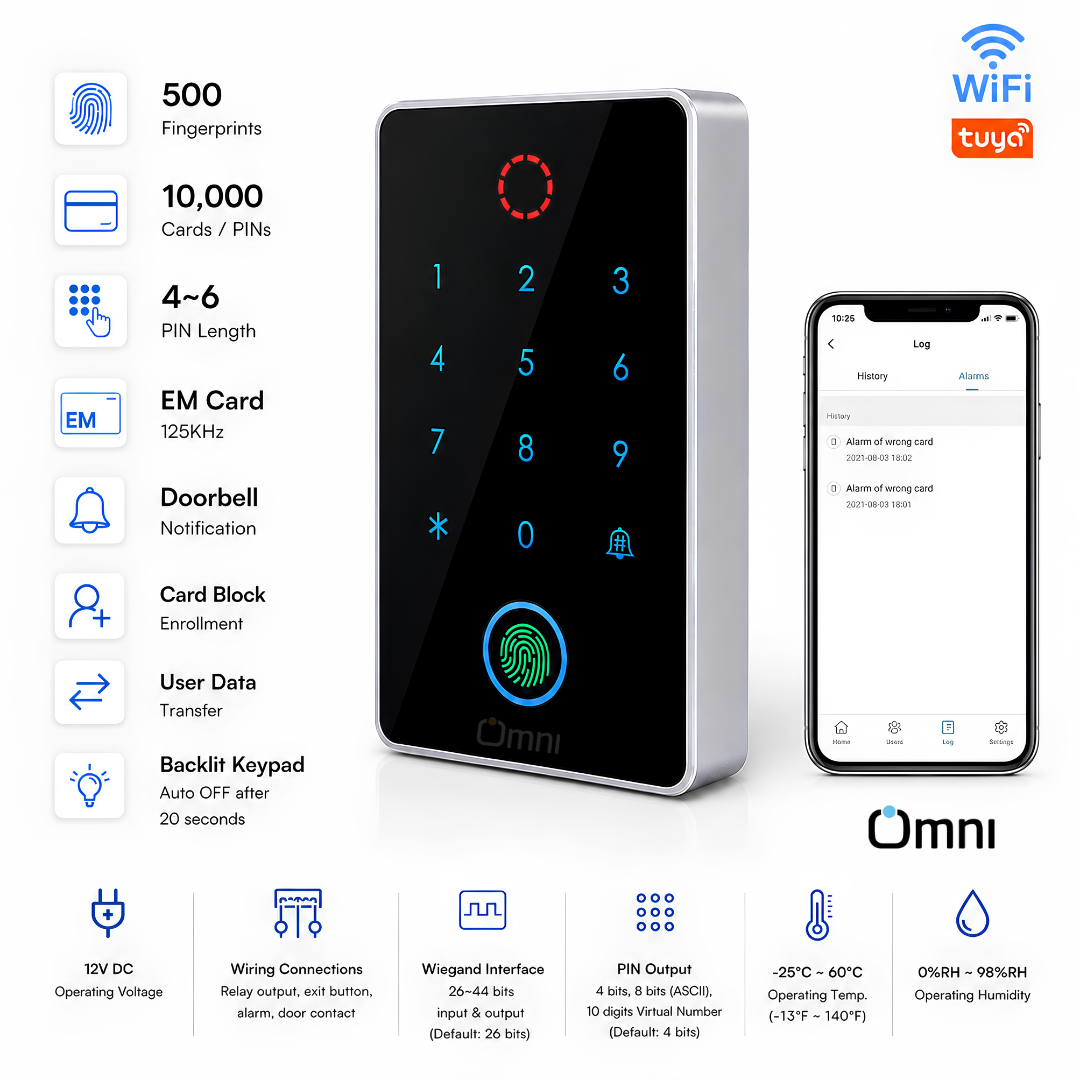

| Ultra-low Power | Standby current is less than 30mA |
| Wiegand Interface | WG26 or WG34 input and output |
| Searching time | Less than 0.1s after reading the card |
| Backlight keypad | Operate easily at night |
| Doorbell interface | Support external wired doorbell |
| Access ways | Card, Pin code, Card & Pin code |
| Independent codes | Use codes without related card |
| Change codes | Users can change codes by themselves |
| Delete users by card No. | The lost card can be deleted by the keyboard |
Specifications of smart access control system
| Working Voltage： DC12-24V | Standby Current：≤30mA |
| Card Reading Distance：1～3cm | Capacity：200users |
| Working Temperature：-40℃～60℃ | Working Humidity：10%～90% |
| Lock output load：≤3A | Door Relay time：0～99S（Adjustable |
| Color | ID | Description |
| Green | D0 | Wiegand Input (Wiegand Output in Card Reader Mode) |
| White | D1 | Wiegand Input (Wiegand Output in Card Reader Mode) |
| Yellow | OPEN | Exit Button input terminal |
| Red | +12V | 12V + DC Regulated Power Input |
| Black | GND | 12V – DC Regulated Power Input |
| Blue | NO | Relay normally-on terminal |
| Purple | COM | Relay Public terminal |
| Orange | NC | Relay normally-off terminal |
| Pink | BELL_A | Doorbell button one terminal |
| Pink | BELL_B | Doorbell button to the other terminal |
Usage of WIFI access control system.
- Application of system
- Home main gates
- Office door Access control
- Hotel access door
- Apartment building access control
