2-in-1 WiFi Smart Fan Dimmer & Light Switch (Tuya / Smart Life, 5-Speed, 2027 Model) | OMNI FLD-27

OMNI FLD-27 — The 2-in-1 Smart Fan Dimmer & Light Dimmer Switch Built for Pakistani Homes

If you’ve ever wished your bedroom fan would slow down gently instead of the usual three-speed jerk, or that your drawing room lights could fade to a warm dinner-time glow — the OMNI FLD-27 WiFi Smart Fan Dimmer and Light dimming Switch is the single panel that does both. One sleek tempered-glass touch panel replaces your existing fan regulator and light switch, gives you 5-speed control on the wall, app control from your phone, and voice control through Alexa or Google Home.

The FLD-27 is calibrated specifically for Pakistani electrical conditions — fluctuating WAPDA voltage, UPS switchover during load shedding, and the mix of ceiling fans plus act as a dimmable ambient lights controller switch, you’ll find in nearly every modern Karachi, Lahore, Islamabad and Rawalpindi home.

Why a 2-in-1 fan and light switch makes sense in Pakistan

Almost every Pakistani room has the same two loads on the wall: a ceiling fan and a main light. Until now, controlling both smartly meant buying two separate smart devices — a fan controller and a light switch — and finding wall space for both. The FLD-27 collapses that into one tempered-glass panel that fits a standard Pakistani back-box.

smart ambient lighting controller

Key Features of the OMNI FLD-27

1–5 gear fan speed control — tuned for Pakistani ceiling fans

Traditional rotary fan regulators in Pakistan are notorious for the lowest setting being either too weak to spin the fan or so harsh the motor hums. The FLD-27 offers 5 distinct speed levels (1–5 gears) with on-screen display, calibrated for the heavy-duty AC ceiling fans common in Pakistan — Pak Fan, GFC, Royal, SK, Khurshid, Climax, Millat and similar. The fan starts cleanly and runs quietly at every speed.

800W light load · works with LED, halogen and incandescent

The light side handles up to 800W of lamp load — more than enough for any chandelier, multi-bulb fitting, or LED panel commonly used in Pakistani homes. Compatible with regular LED, halogen and incandescent lights.

Tuya / Smart Life app — same app you already use

The FLD-27 pairs with the free Tuya Smart or Smart Life app — the same app that runs your smart bulbs, WiFi CCTV, smart breakers and door locks. One app for the whole house. Pairing takes about 30 seconds over 2.4 GHz WiFi, with the option of Bluetooth-assisted pairing for faster setup. No hub or gateway needed.

Voice control with Alexa & Google Assistant

“Alexa, set bedroom fan to speed 3.” “Hey Google, turn off the drawing room light.” Both fan and light respond independently to voice commands. Each operates non-interfering — wall touch, app, and voice all work simultaneously without conflict.

Works on UPS — won’t drop out during load shedding

This is the one feature imported brands rarely test for. We’ve validated the FLD-27 on common Pakistani UPS units (Homage, Inverex, Crown) — the switch holds its WiFi connection through mains-to-UPS switchover, and the speed/state memory survives the power cut.

3 power-restart modes

Configure what happens after a power cut:

• Default ON — fan/light comes back on automatically
• Default OFF — stays off until you turn it on
• Remember last state — returns to whatever was running before the cut (recommended for bedrooms)

Timer, countdown & schedules

Set the fan to drop to speed 2 at 11 PM. Auto-turn-off the light 30 minutes after bedtime. Set a countdown timer to switch off the fan when you leave for work. All schedules run on the device itself, so they keep firing even if your internet is down.

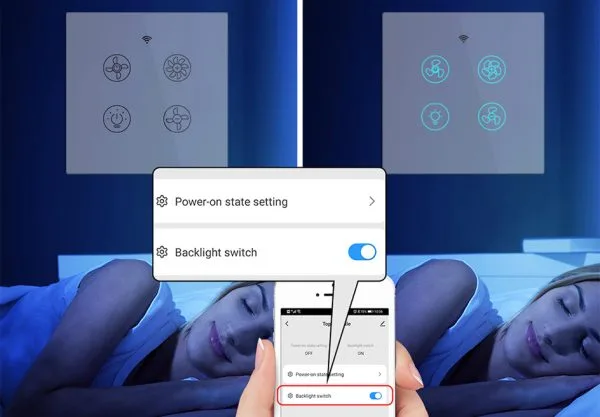

Tempered glass touch panel

4mm crystal tempered glass front, capacitive touch buttons, soft LED backlight indicator for night visibility. Built-in backlight ON/OFF option so it doesn’t disturb your sleep. PC flame-retardant body for safety.

Sharing & group control

Share device control with family members — no need to share your Tuya account password. Group multiple FLD-27s together to control a whole floor of fans and lights with one tap.

OMNI FLD-27 — Full Technical Specifications

OMNI FLD-27 vs Two Separate Smart Switches — Why the Combo Wins

Who the FLD-27 Is For

• Bedrooms & drawing rooms — the classic Pakistani fan + main light combination
• Rental property owners — manage tenant rooms remotely, schedule fan/light off during empty hours
• New home builds — futureproof every room with one panel instead of two
• AirBNB & guesthouse owners — set automatic “guest checkout” routines
• Home offices — drop the fan to speed 2 to stop paper movement during video calls
• Elderly parents — let family members control their fan/light remotely from another city

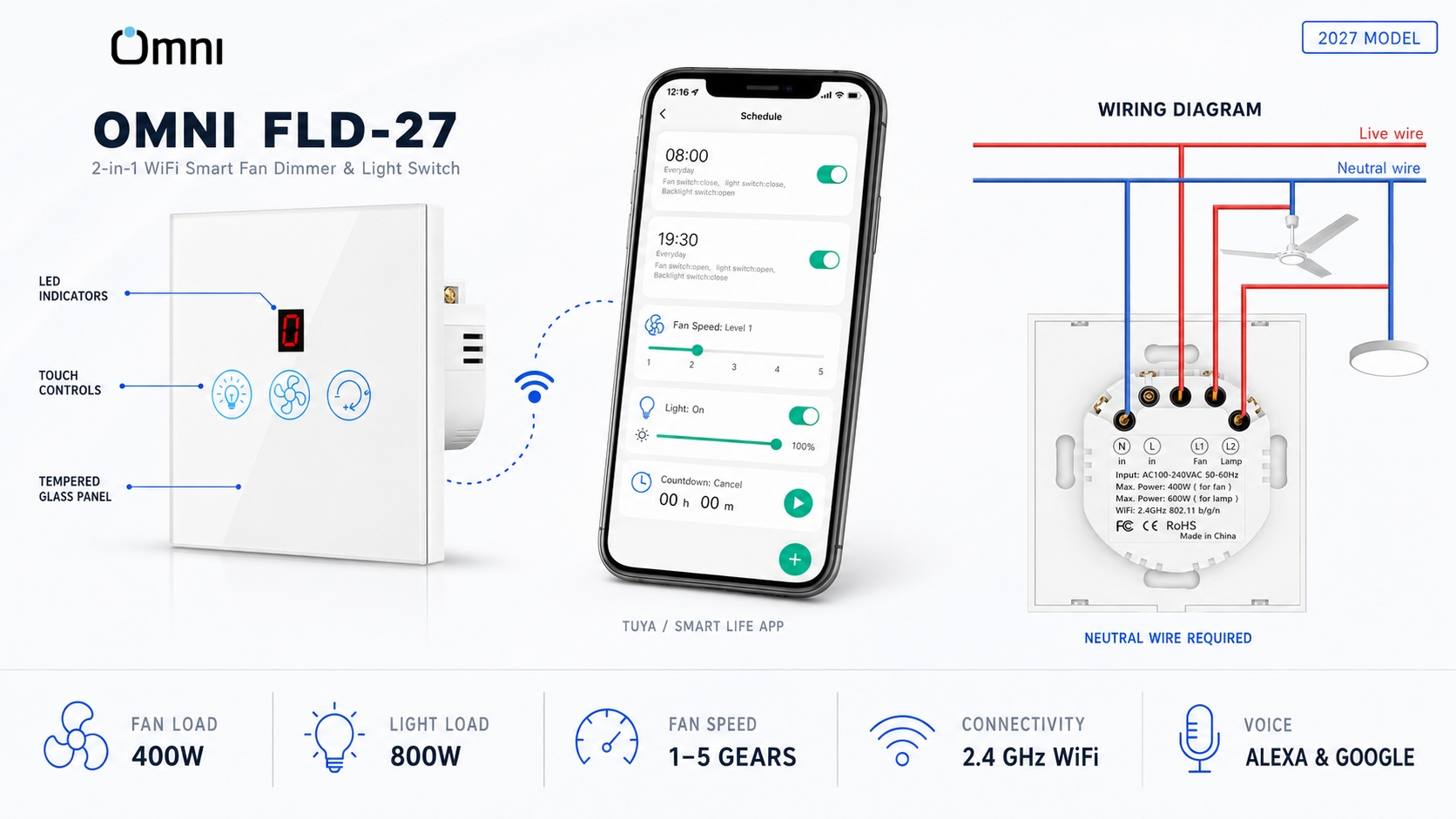

FLD-27 wiring diagram — Pakistani back-box installation

How to Install the OMNI FLD-27 (Pakistan Wiring Guide)

The FLD-27 requires a neutral wire at the switch box. In most homes built or rewired after the year 2000 in Pakistan, neutral is already pulled to the switch position. In older houses (pre-1995 wiring), neutral may only be at the ceiling rose — in that case ask any qualified electrician to extend it; it’s a 15-minute job.

1. Switch off the mains breaker for that room.
2. Remove the existing fan regulator and light switch from the wall.
3. Connect L (live in), N (neutral), L1 (fan load), L2 (light load).
4. Mount the FLD-27 in the back-box and tighten the screws.
5. Switch the breaker back on, open the Tuya / Smart Life app, tap “+”, and follow the WiFi/Bluetooth pairing prompts.

📞 Need help? OMNI Smart offers paid installation across Lahore, Islamabad, Rawalpindi & Karachi — book with our installation team. Contact us here.

Frequently Asked Questions

Will the FLD-27 work with my ceiling fan in Pakistan?

Yes — the FLD-27 is rated for standard AC ceiling fans up to 400W, which covers nearly every domestic ceiling fan sold in Pakistan including Pak Fan, GFC, Royal, SK, Khurshid, Climax and Millat. It does not work with fans that have a built-in remote receiver or DC/BLDC fans with their own controller.

How many fan speed levels does the FLD-27 have?

5 speed levels (1–5 gears), displayed on the panel itself. You can change speed from the wall touch panel, the Smart Life app, or by voice through Alexa/Google Home.

What’s the maximum light load it supports?

800W on the light circuit. That’s enough for a large chandelier, a row of LED panels, or multiple ceiling lights wired in parallel. The light side is an on/off switch, not a dimmer — for full brightness dimming, pair it with our separate WiFi dimmer module on the same circuit, or use dimmable smart bulbs.

Does the FLD-27 need a neutral wire?

Yes. Like all WiFi-powered smart fan-and-light controllers, the FLD-27 requires a neutral wire at the switch position to power its WiFi electronics. Most Pakistani homes built or rewired since 2000 already have neutral at the switch.

Will it work on UPS during load shedding?

Yes. We specifically tested the FLD-27 with common Pakistani UPS units (Homage, Inverex, Crown). The switch handles the mains-to-UPS switchover cleanly and keeps its WiFi connection, schedules, and speed memory across the transition.

Does it support 5 GHz WiFi?

No — like all Tuya smart switches, the FLD-27 uses 2.4 GHz WiFi only. Most Pakistani routers (PTCL, StormFiber, Nayatel, Transworld) broadcast both bands automatically, so this is rarely an issue. If your phone is on 5 GHz during pairing, just switch to the 2.4 GHz SSID once.

Can I control the FLD-27 when I’m not at home?

Yes — as long as your home WiFi has internet, you can control the fan speed and light from anywhere through the Tuya / Smart Life app.

Does the FLD-27 work without internet?

Wall touch controls always work — even with no internet, no power to the router, or even with WiFi switched off, you can use the FLD-27 manually like a normal switch. Schedules also continue to run on the device itself. Only voice control and remote app control need internet.

What happens after a power cut?

You can configure the FLD-27 to do one of three things after a power restart: always come on, always stay off, or return to whatever state it was in before the cut. The “remember last state” mode is most popular for Pakistani homes due to frequent load shedding.

What’s the warranty in Pakistan?

1-year replacement warranty, handled locally by OMNI Smart. No DHL-to-China hassles — bring or send the unit to our Lahore or Islamabad office and we replace it directly.

Can I pair this with my existing Tuya door lock, CCTV or smart breaker?

Yes — that’s the main reason we use the Tuya / Smart Life ecosystem. Your FLD-27 will appear in the same app as your Tuya door lock, V380 cameras (via Smart Life), Tomzn WiFi breakers, and smart bulbs. You can build cross-device automations: e.g. “when CCTV detects motion at the gate, turn drawing-room light on and set fan to speed 2.”

What’s in the Box

• 1 × OMNI FLD-27 2-in-1 Smart Fan Dimmer & Light Switch (tempered glass panel)
• 2 × Mounting screws
• 1 × Urdu + English user manual
• 1 × Warranty card

Certifications

The FLD-27 is CE, FCC and RoHS certified for electrical safety, electromagnetic compliance and restriction of hazardous substances. The panel is rated for 100,000 mechanical operation cycles — roughly 27 years of daily use at 10 operations per day.
