WIFI Smart Switch Module – 4 Gang

Specification of WIFI smart switch module :

• Product type :1Gang/2 Gang/3 Gang /4 Gang WIFI Switch Module
• Voltage:AC100-240V 50/60Hz
• Max. load :LED 250W 16A
• Operation Frequency: 2.412GHz-2.484GHz
• Operation temp. :-10℃ + 40℃
• Protocol :WIFI IEEE 802.11b/g/n
• Operation Range <100m
• Dimension (WxDxH) :39.2×39.2×18 mm
• IP Rating :IP20

Main Feature for smart tuya module :

[APP Remote Control]   Download smart life /Tuya smart APP on your phone&Tablet to control
the switch anywhere/anytime.

[Hand Free Voice Control] —- Compatible with amazon alexa echo ,google home ect ,a simply
command to voice control the receiver.

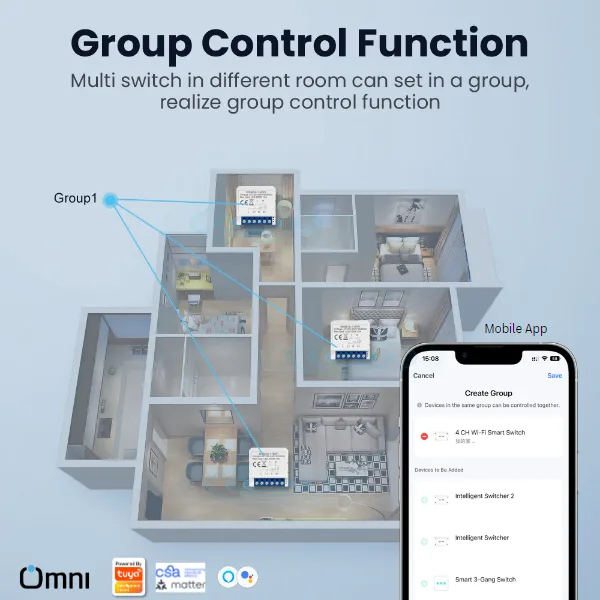

[Group-Control Function] — Multi switch in different room can set in a group ,realize group
control function.

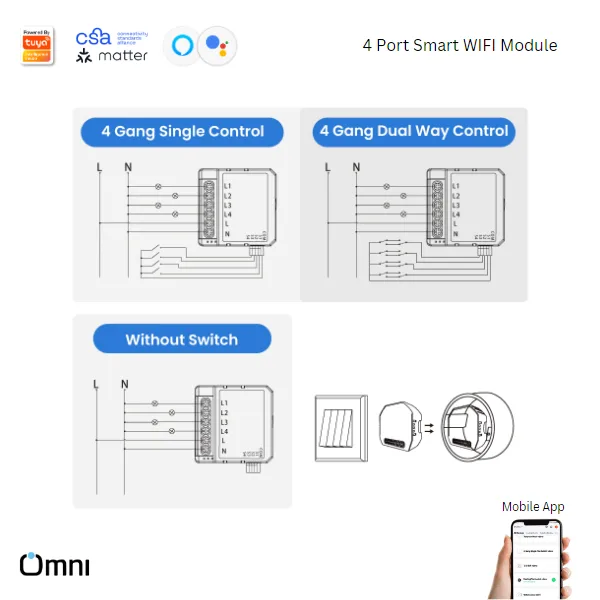

[Dual Way Control] — Can fully upgrade 2 way control switch without change wiring design of
house.

[Linkage Function] — It can linkage with other switch module ,sensor and appliance in your
home ,make create different scene possible,such as sleeping mode,working mode,dinner
mode ,back home mode ect.

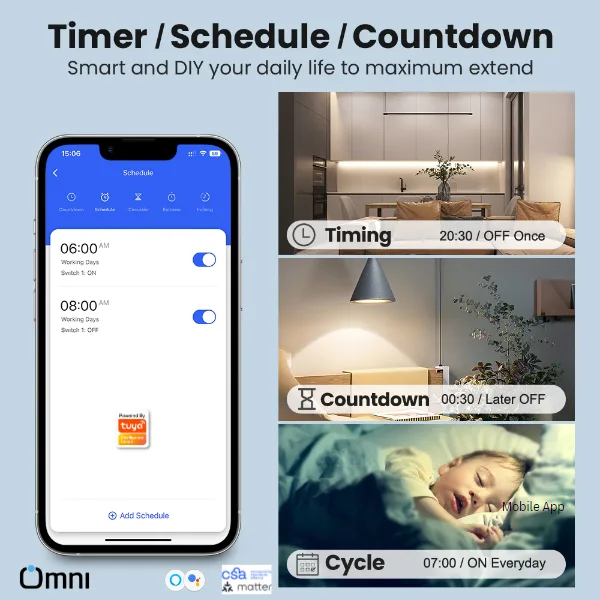

[Timer,Schedule&Count Down Function] — You can create schedule according to your personal
requirement ,as well as timing and count down,smart and DIY your daily life to the maximum
extend.

[Family Share Function] — You can share the switch to your family with the limited right,create a
smart home together with your family member.

[Easy to Install] — Mini size switch module can be installed in switch box or in lamp box
easily.(Notice: please turn off electricity during
