Intercom Door Lock – See the Guest, or Open by Fingerprint and Card

(3 customer reviews)

Original price was: ₨ 18,500.Current price is: ₨ 15,000.

10 People watching this product now!
Quick Question
VC4F · Intercom door lock
One outdoor station, two uses. See the person on your phone and open the connected lock, or let an enrolled fingerprint or card release it. At a warehouse or goods door, a visitor waits until someone sees them. Pre-authorised staff walk in on fingerprint or card.
See, then open
Video call on the phone
100 + 890
Fingerprints and EM cards
No indoor screen
The phone is the monitor
IP65
Zinc-alloy outdoor station
WiFi station. The phone can answer on mobile data. One relay for a separate lock. Power 12–18V DC.

Payment Methods:

  • 10+ Yearsin business
  • 5,000+installations done
  • Display Centervisit us in person
  • Cash on Deliverypay when it arrives
  • Bank Transfersecure direct payment
  • After-Sales Supportdedicated ticket system
SKU: BD-WP-22 Brands: , ,

Customer Reviews

5
3 reviews
3
0
0
0
0

3 reviews for Intercom Door Lock – See the Guest, or Open by Fingerprint and Card

Clear filters
  1. Nida muneeb –

    Best doorbells ever, futuristic innovative has cam, android compatible, user friendly. and also good looking. best for home security .

  2. Rizwan Sheikh –

    The Smart IP Video Doorbell Intercom system enables you to see, hear and speak to visitors at your door from wherever you are. The intercom can be operated via an app on your mobile phone and is easy to install.

  3. faiza –

    fast delivery

Add a review

Product Description

Intercom door lock · VC4F · Fingerprint variant

BD-WP-22 intercom door lock. See the guest, or open by fingerprint and card

The VC4F is an intercom door lock station, not a lock fitted inside the door. It is one outdoor unit with two uses. Use it as a video intercom when you want to see the person and then open, or as the reader that releases a connected lock for people already enrolled. No indoor screen is required. The phone is the monitor.

This fingerprint variant reads a fingerprint, an EM card, or an open command from the phone. It has no keypad. Ask Omni Smart for the VC4F intercom door lock price in Pakistan.

See, then openFingerprint and EM cardNo indoor screenIP65 zinc alloyOne relay, 2A

One station, two ways in

Both ways use the same intercom door lock system. The difference is who is allowed to pass without a person watching.

1See the person, then open. A visitor presses the station. The call reaches the phone. You see them, speak, and open only if you choose. The phone can do this on mobile data. This is the video intercom use.
2Enrolled fingerprint or card. Pre-authorised people do not wait for a call. A saved fingerprint or EM card releases the connected lock. The app can add or remove users, set a time limit, and show the opening record.

Where this intercom door lock is used

Mount it at the gate or door where the person stands. The lock itself is a separate unit on the relay.

1Warehouse or goods door. A customer or visitor is let in only after someone sees them on the phone and opens. Staff who are already enrolled walk in with a fingerprint or card. A timed visitor user can be removed from the app when the visit ends.
2Office or shop entrance. The person at the desk sees who is outside before the lock releases. Enrolled staff use a card or fingerprint at opening time.
3House gate. See the caller and open from the phone. There is no indoor monitor to install. This is an intercom door opener for a separate lock, including an intercom gate lock system.

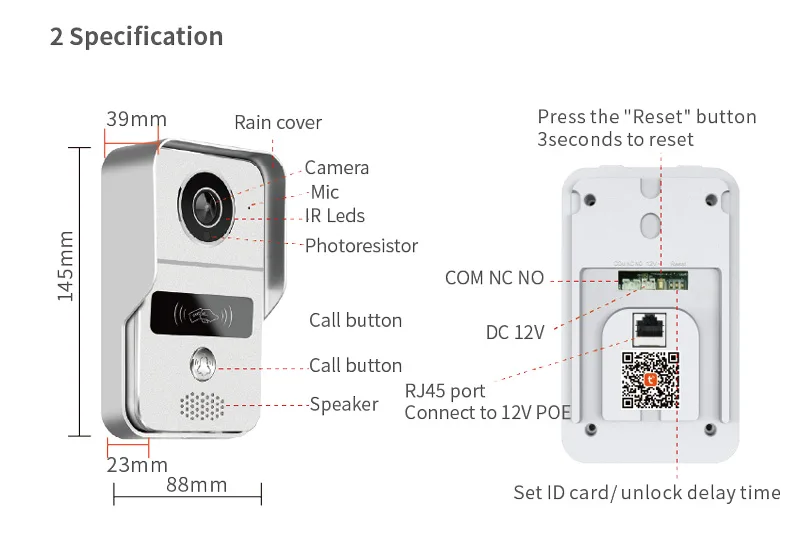

Specifications

VC4F, also listed as Vcontrol 4-F. Fingerprint variant.

ModelBD-WP-22
Entry on this variantPhone, fingerprint, or EM card. No keypad.
VideoVideo call on the phone. No indoor screen.
App users500
Local users1,000 hardware users
Fingerprints100
Cards890 EM cards, 125 kHz, read range 2–6 cm
Visitor users10, with a time limit set in the app

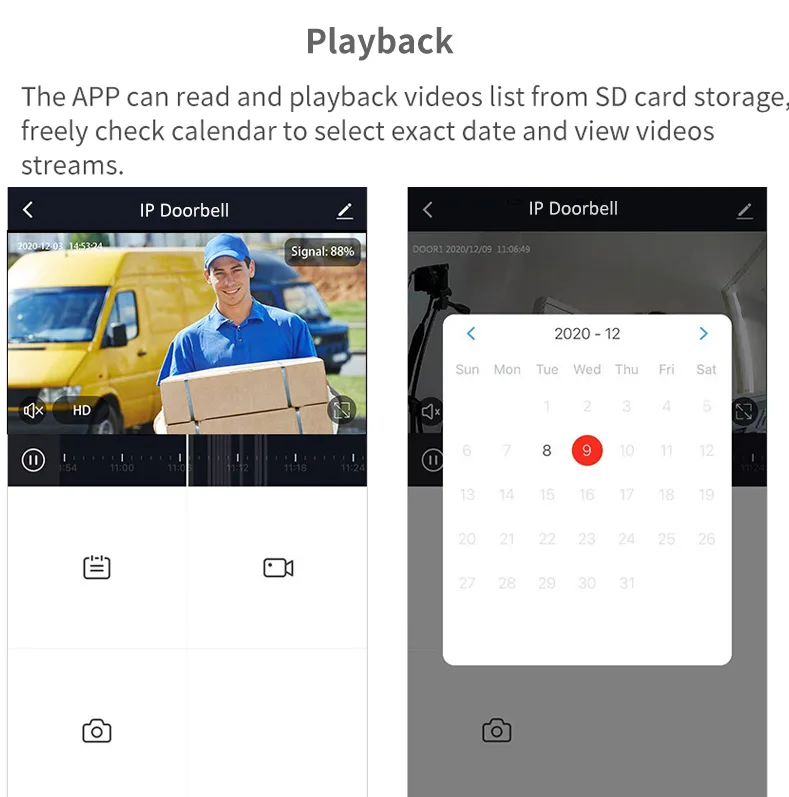

AppTuya. Add or delete users, time limits, opening record, remote open.
NetworkStation on WiFi. Phone can answer on 3G, 4G, or 5G mobile data.
RelayOne relay, NO / NC / COM, 0–99 seconds, 5 seconds default, 2A maximum
Also wiredExit button. Wiegand 26–44 input and output, default 26-bit.
HousingZinc alloy, anti-vandal, silver and black, IP65
Size and weight142 × 48 × 22 mm. Unit 315 g. Shipping 410 g.
Power12–18V DC. Idle 60 mA or less. Active 150 mA or less.
Environment-30°C to 60°C. Humidity 0–92% RH.
Sold byOmni Smart, Pakistan
With the station

What the unit does

  • Video call, then open from the phone
  • Fingerprint and EM card for enrolled people
  • Opening record and user time limits
  • Exit-button input for the people already inside
Installer adds

Connected parts

  • 12–18V DC supply
  • WiFi at the gate or door
  • The separate lock on the relay
  • EM 125 kHz cards for card users

The lock this station releases

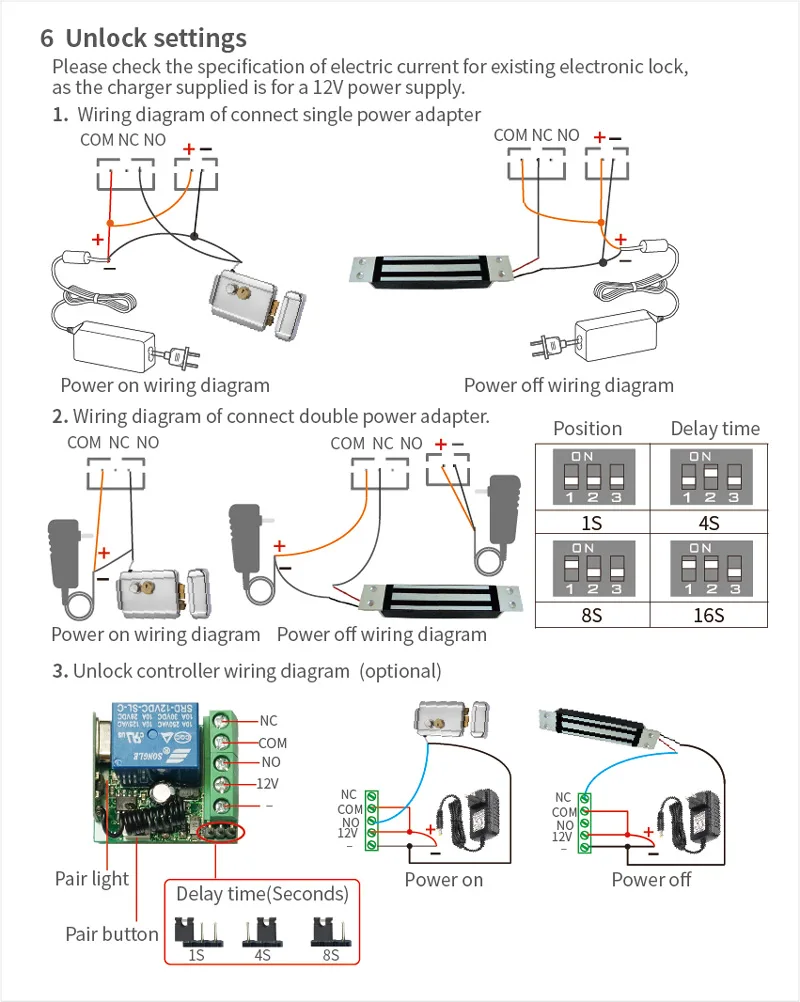

The VC4F is the station. The lock is separate. Its relay, rated 2A, NO / NC / COM, can release a connected magnetic lock or an electric strike. An exit button lets people already inside leave. Wiegand 26–44 is on the same terminal set for a panel that needs it.

A door intercom with lock release works like this: the person is seen, or an enrolled fingerprint or card is accepted, and only then the relay opens. That is a video intercom with door release, without an indoor monitor.

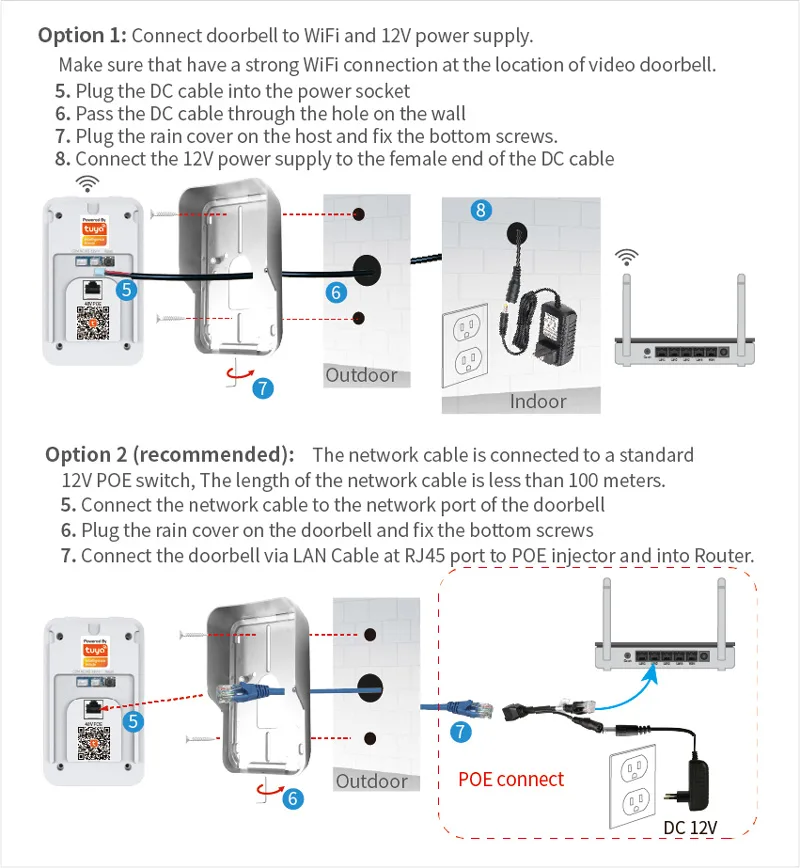

Setup

  1. Fix the station where the person stands. Outdoor, IP65, zinc alloy, 142 × 48 × 22 mm.
  2. Give it 12–18V DC and WiFi. The station does not use a SIM.
  3. Wire the relay to the lock. NO, NC, and COM. Set the open time from 0 to 99 seconds.
  4. Add people in the app. Fingerprint, EM card, or a visitor with a time limit.
  5. Test both ways. A stranger waits until someone sees them and opens. An enrolled fingerprint or card opens without that call.

Questions

What is the intercom door lock?

It is an outdoor station that lets you see the person and open a connected lock from the phone, or lets an enrolled fingerprint or card release that lock. It is an intercom lock for door and gate use. It is not a lock body fitted in the door leaf.

Can a visitor enter only after someone sees them?

Yes. Leave that person off the fingerprint and card list. The lock stays closed until someone accepts the video call and opens. That is the right setup for a customer at a warehouse or goods door.

Can pre-authorised staff enter without a call?

Yes. Save the fingerprint or issue an EM (RFID) card. Those people release the lock themselves. The app keeps the opening record.

Does it need an indoor screen?

No. The call is on the phone. If you want a wall screen indoors, that is a different product.

Which card does it read?

EM 125 kHz, at 2–6 cm. This variant does not use a keypad code.

اردو میں

یہ  انٹرکام ڈور لاک ایک آؤٹ ڈور اسٹیشن ہے، دو کاموں کے ساتھ۔ فون پر شخص کو دیکھ کر جڑا ہوا لاک کھولیں، یا اندراج شدہ فنگر پرنٹ اور EM کارڈ سے داخلہ دیں۔ اندرونی سکرین کی ضرورت نہیں۔ گودام یا مال کے دروازے پر مہمان تب آئے جب کوئی اسے دیکھ کر کھولے، اور پہلے سے اجازت یافتہ عملہ فنگر پرنٹ یا کارڈ سے آ جائے۔ IP65، 12 سے 18 وولٹ، ایک ریلے الگ لاک کے لیے۔
