Tuya Smart Life WiFi Single Phase 100A Energy monitor Two-way Prepaid Meter Auto re-closing Voltage Current Protector Timer.

This is a smart solar breaker for solar electricity generation system in Pakistan. It give real time stats on electricity being feed to grid and used in the domestic system. It gives additional option for protection via over volt and under volt protection for solar system.

Tuya WIFI Smart Bidirectional Energy Meter with History Graph IN Pakistan

bi direction smart reverse solar meter

Solar Protection breaker with Auto Re-closing, WIFI mobile application for protection of solar system.

Re-closing time and number of times re-closing is allowed can be configured from mobile application.

Auto Recolosing solar wifi Circuit Breaker

Smart reverse smart bi direction wifi meter for solar system in Pakistan

reverse smart bi direction wifi meter for solar system

Main functions of smart solar circuit breaker features:-

1. Four options on control.
2. Remote control anytime anywhere (mobile app, Tuya Smart, Smart Life).
3. Voice control (Amazon Alexa, Google Nest).
4. Timing control (programmable timer schedule).
5. Manual control (by button).
6. Monitor real-time electricity statistics on phone (A, V, mA, kW, kW/h, ℃).
7. Bi-directional measuring positive and negative active energy consumption.
8. Prepaid metering mode.
9. Adjustable protections circuit breaker against over/under voltage, over-current, residual current(leakage), high temperature.
10. Over-current protection: 1~100A adjustable, 100A as default (alarm disable as option).
11. Over voltage protection: 120~300V adjustable, 275V as default (alarm disable as option).
12. Under voltage protection: 80~210V adjustable, 175V as default (alarm disable as option).
13. Residual current(leakage) protection: 10~150mA adjustable, 50mA as default (alarm disable as option).
14. Temperature protection: 10~85℃ adjustable, 80℃ as default (alarm disable as option).
15. Auto-reclosing after protected conditions recovery (disable as option).
16. Reclosing time delay: 1~99s adjustable, 30s as default.
17. Reclosing times allowed: 1~30 adjustable, 5 as default.
18. Local manual setting and operation on device (no need WiFi support).
19. Four modes timing schedule programmable on App.
20. Device sharing among family or your team.

smart solar circuit breaker features

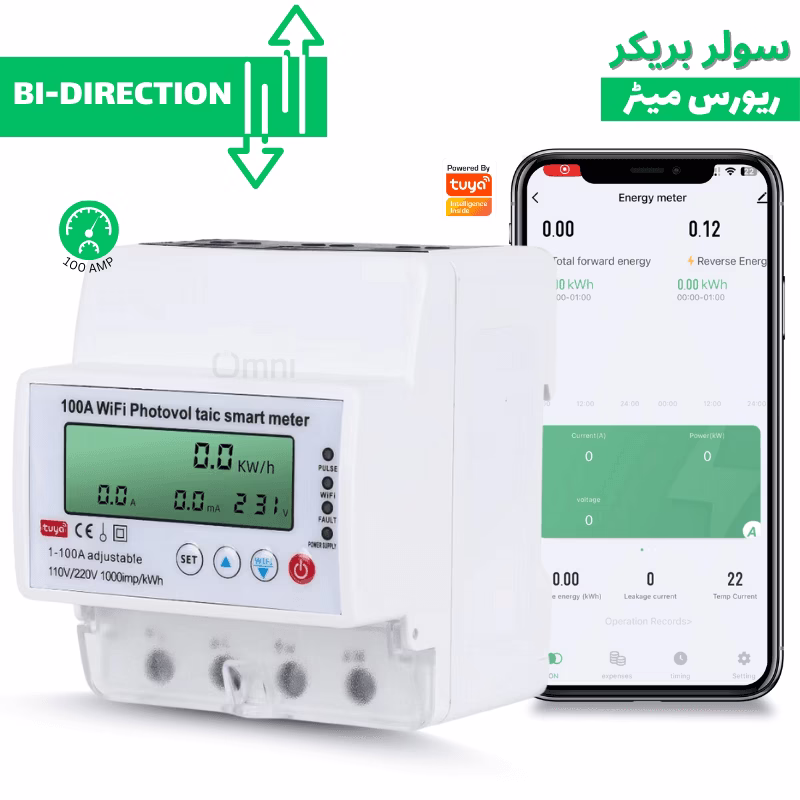

reverse bi-direction meter wifi mobile app

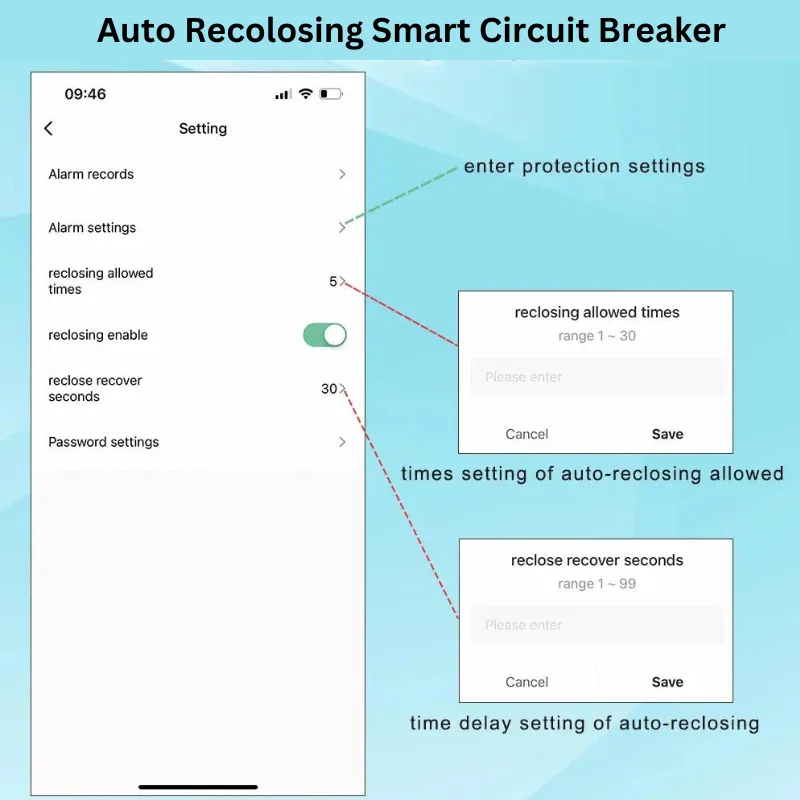

solar protection breaker configuration on mobile

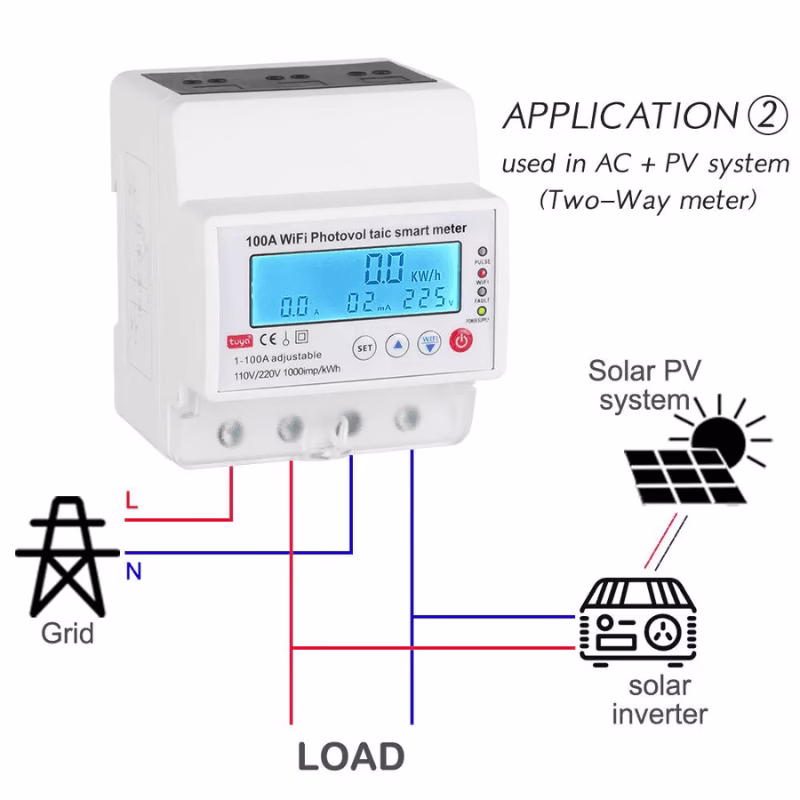

Solar smart energy meter installation Instructions

Complete range of smart circuit breakers visit omni smart
