10A Smart DC WiFi Relay Switch Module (7–32V DC) with RF 433MHz Support | Tuya & Smart Life Compatible Garage Door & Gate Opener

Versatile Smart Automation for DC-Powered Systems

The 10A Smart DC WiFi Relay Switch is a professional-grade module designed for seamless integration into home security and DIY projects. Operating on a flexible DC 7V–32V range (compatible with 12V, 24V, and 32V systems), this device allows for remote control via smartphone or voice commands through Amazon Alexa and Google Home.

Understanding Working Modes: Self-Locking vs. Inching

This Smart DC WiFi Relay module features two primary operating modes to suit different electrical requirements:

• Self-Locking Mode: Acts like a traditional toggle switch. When you turn it ON, it remains ON until you manually turn it OFF. Ideal for DC motors, pumps, and constant lighting.
• Inching (Momentary) Mode: Provides a brief “pulse” of power. The relay turns ON and automatically switches OFF after a pre-set duration (typically 1 second). This is essential for devices requiring a trigger signal, such as gate locks and garage door motors.

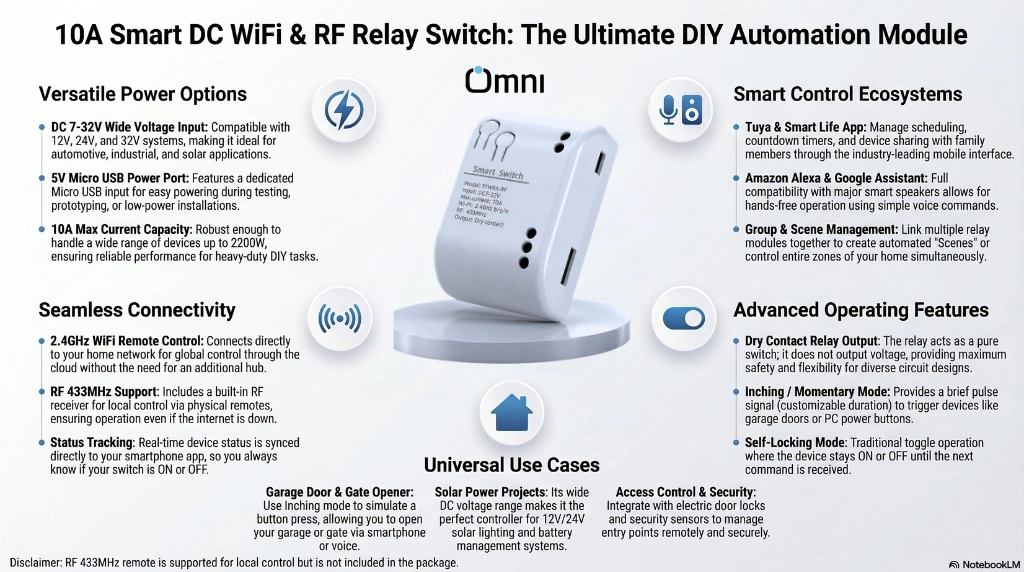

DC smart module for gate lock price in Pakistan

How to Configure Inching Mode in the App for Smart DC WiFi Relay in Pakistan

Setting up a momentary pulse for your smart system is simple via the Tuya or Smart Life app:

1. Device Pairing: Power the module via DC 7-32V or Micro USB. Long-press the pairing button until the LED flashes, then add it to your app over 2.4GHz WiFi.
2. Access Settings: Open the relay control interface in the app.
3. Enable Inching: Navigate to the settings menu, locate the “Inching” toggle, and switch it to ON.
4. Set Duration: Customize the pulse time (e.g., 1 second) to match your gate or door motor requirements.

Ideal Use Case: Smart Garage Door Opener

This relay is a top choice for garage automation because it features a Dry Contact Output. It acts as a physical bridge between your existing garage wall button wires without sending external voltage into your garage motor, preventing electrical damage. Simply wire the relay’s COM and NO terminals to your garage motor’s push-button terminals and set the app to Inching Mode.

Technical Specifications

Safe and Reliable Design

Built with flame-retardant ABS material and a relay lifespan of over 1 million operations, this module is designed for long-term stability. Whether you are controlling a gate lock via mobile app or a complex industrial circuit, this relay provides secure and responsive automation.
