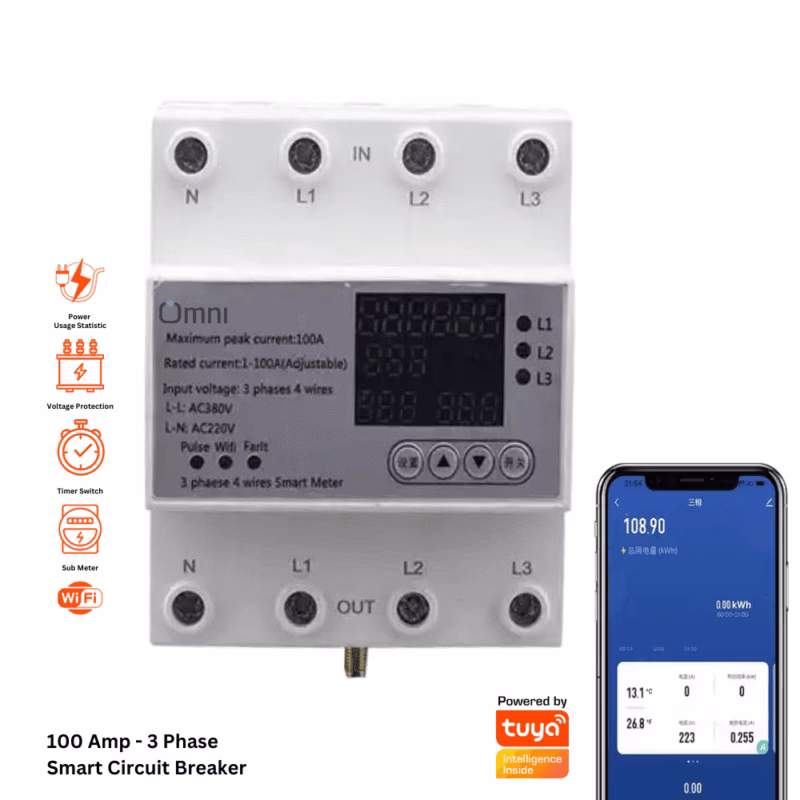

3 Phase Smart Circuit Breaker – 100 amp Tuya Smart Energy Meter

This 3 Phase Smart Circuit Breaker can be used to monitor or automatically turn on off based on and off 3 phase electricity. It comes in 4 P size for 3 phase and neutral wire to connect together. It is 100 Amp load rates.

• 3 Phase meter with real time energy usage on Mobile and circuit breaker
• Over volt protection 3 phase smart circuit breaker
• Under volt protection 3 phase Breaker
• Over Currant Smart breaker
• 5 Phase Digital Prepaid Electric Meter
• Auto Timer Function

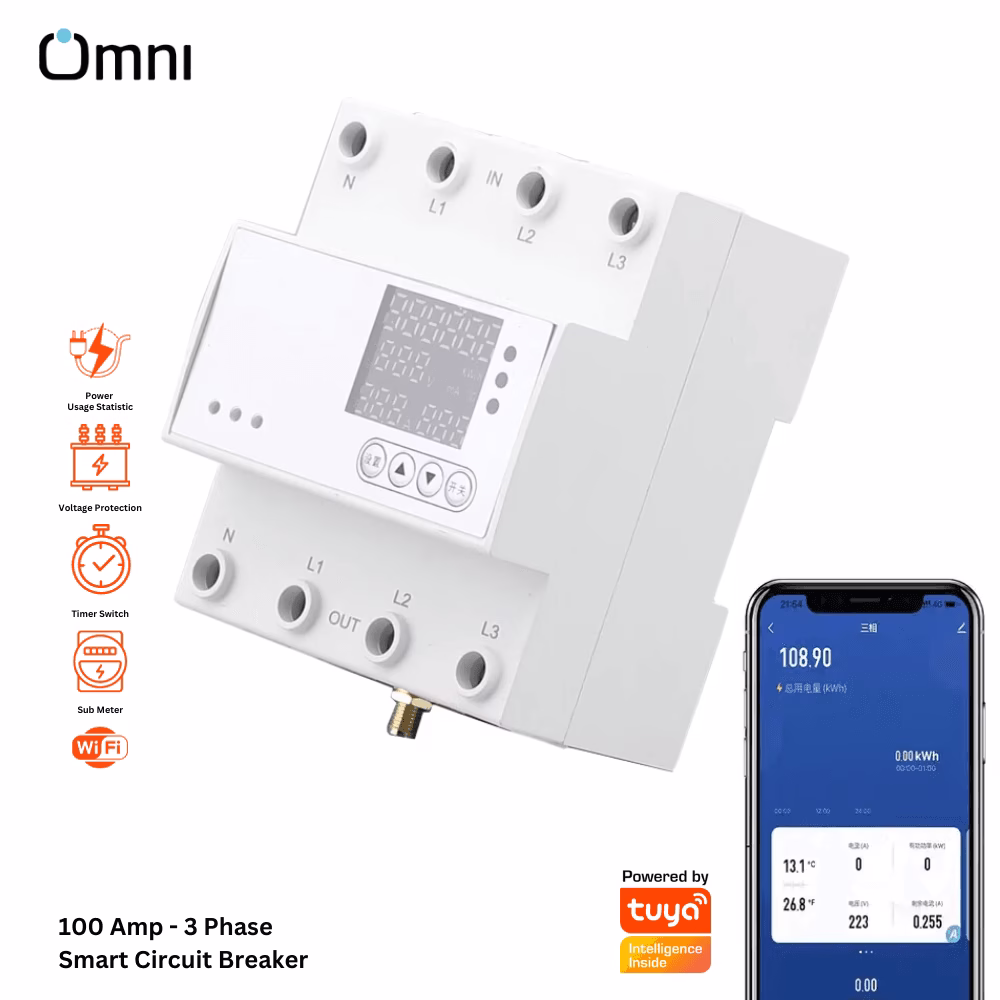

100 amp Smart Circuit Breaker

Description of 3 Phase Sub Energy Meter:

1. Remote Control ON/OFF by Tuya APP or Smart Life APP at anytime from anywhere in the world
2. Total active energy kWh measure in the App
3. APP can read kWh , R.M.S current , voltage , active power(The active power current voltage only for A phase, if balance it’s all the same for 3 phase)
4. Timer control function. Unlimited Options
5. Delay time cut off function
6. Real-time display of Voltage, Current, Active Power, reactive Power, power factory ,frequence, total Energy kWh
7. Power Supply: 3*230V/380V 50-60Hz
8. Rated Current: 100 Amp
9. Pulse Frequency: 400imp/kWh
10. 35mm Din Rail install
11. can use same TUYA APP , compatible with other TUYA product such WIFI socket , led ,fans and so on
12. Active energy accurate is class 1 , IEC62053-21
13. Push the button last more than 10s , the WIFI led will flash quickly , then use APP to operation

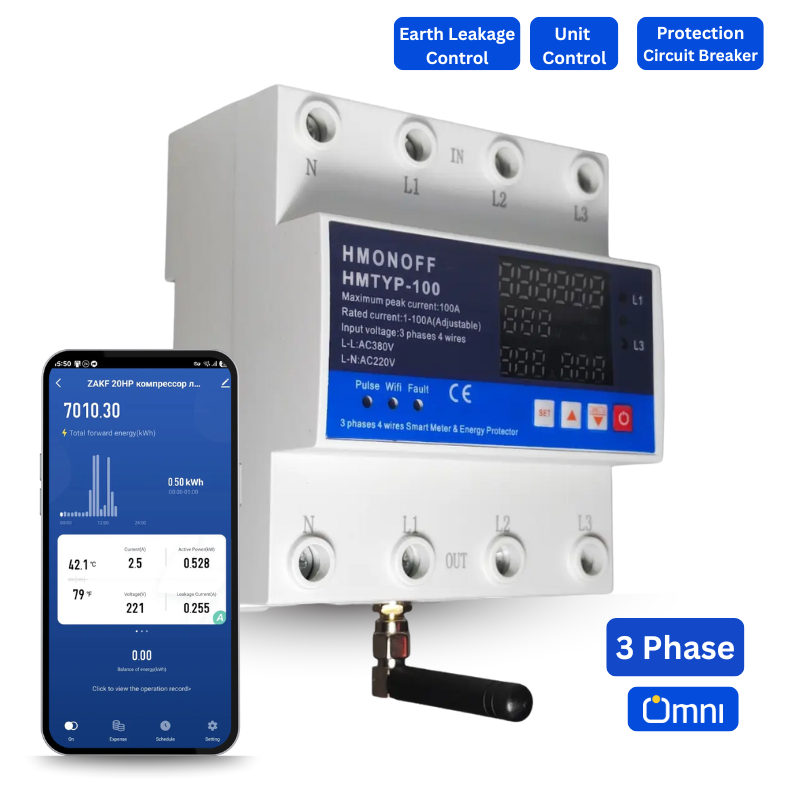

3 phase 4 wires smart circuit breaker meter and energy protector

Note:This meter Only supports 2.4G Wireless Network,  5G Not supported

Tuya 3 Phase Din Rail WIFI Smart Energy Meter Timer Power Consumption Monitor kWh Wattmeter 3*120V 3*220V 3*230V 50/60Hz

3 Phase Smart Circuit Breaker in Pakistan
