Smart Unit Control Breaker OP63-VAP-X, 63A Prepaid
₨ 4,250 Original price was: ₨ 4,250.₨ 3,998Current price is: ₨ 3,998.
The OP63-VAP-X is a 63A single-phase unit control device for one circuit in a home, shop, office, or rental in Pakistan. Its color screen shows live energy use, and it can switch that circuit off when the unit allowance you set is finished. This is a circuit limiter, not a LESCO, IESCO, K-Electric, FESCO, or WAPDA prepaid meter.
- 1-pole, white, DIN-rail breaker, stated up to 63A at 220V / 50Hz
- Prepaid unit allowance, plus voltage, current, overload, and temperature protection
- Control from the breaker buttons or by WiFi in Tuya and Smart Life
Temperature sensing & protection for safer, smarter power management.
Payment Methods:
- 10+ Yearsin business
- 5,000+installations done
- Display Centervisit us in person
- Cash on Deliverypay when it arrives
- Bank Transfersecure direct payment
- After-Sales Supportdedicated ticket system
Customer Reviews
2 reviews for Smart Unit Control Breaker OP63-VAP-X, 63A Prepaid
Clear filtersYou must be logged in to post a review.
Product Description
63A unit control device for one circuit
The Smart Unit Control Breaker, model OP63-VAP-X and SKU VAP-X, is sold by OMNI Smart Home Company at omnicloudsolutions.com. On 2 November 2026 the price was Rs 4,250. Shoppers also call it a unit control breaker, unit breaker, unit lock breaker, or digital breaker.
It is a 1-pole device for a single-phase circuit. You can read consumption on its color screen and set a kWh allowance for the circuit it controls. When that allowance is used, this breaker opens that circuit. The electricity company’s own meter still measures the connection and the official bill still applies.
It does not replace a distribution company’s prepaid meter, and it does not change a LESCO, IESCO, K-Electric, FESCO, or WAPDA account. For a landlord, shop, or rental, it is a limit on one circuit, not a substitute for the utility bill.

What the color screen, buttons, unit allowance, and protection features do.
What the breaker shows and controls

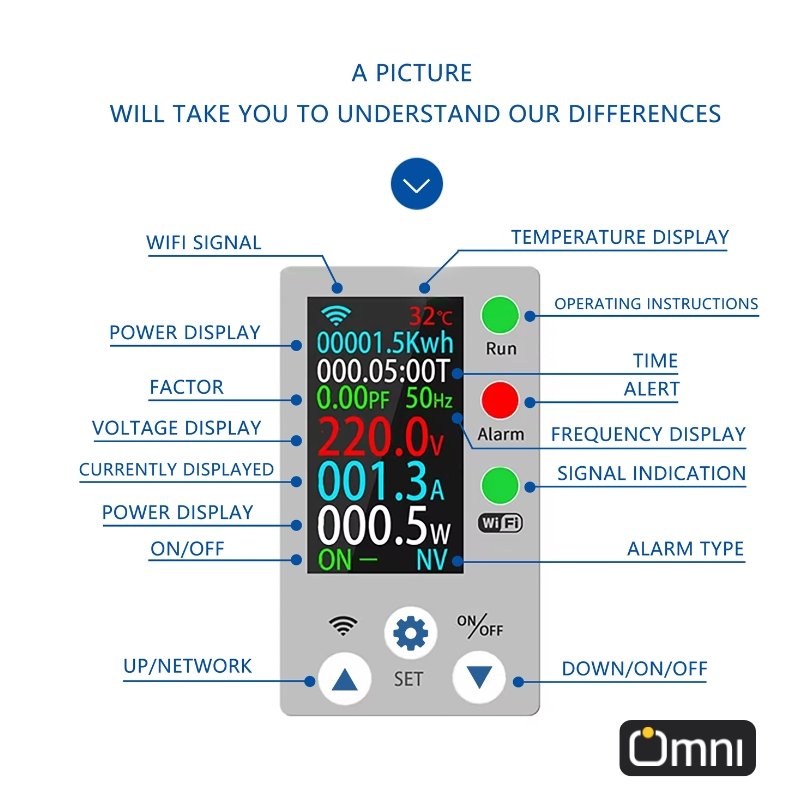

- Color LCD readings: kWh, time, power factor, frequency, voltage, current, power, and temperature in °C.
- The screen also shows WiFi, on/off, and the alarm state. Sample readings on the product photos are demonstrations, not a test certificate.
- Buttons are SET, up/network, and down/on-off. Indicator lights are Run, Alarm, and WiFi.
- Top and bottom terminals are marked N and L.

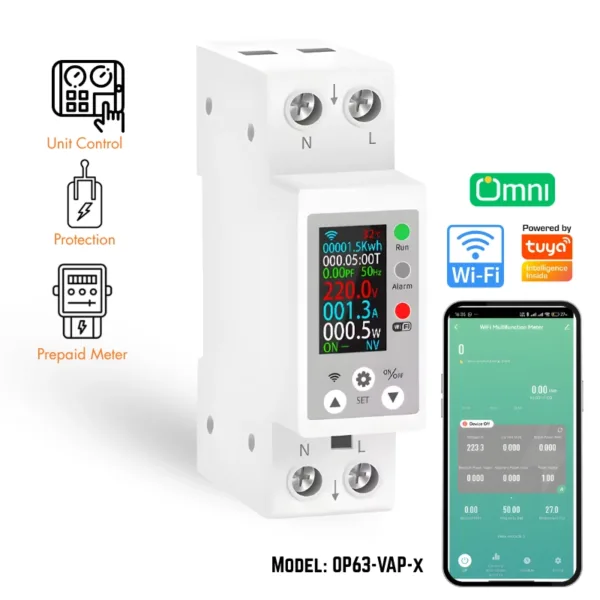

- Hero labels on the product photo are Unit Control, Protection, and Prepaid Meter. Model printed on the photo: OP63-VAP-X.
Specifications
| Item | Detail |
|---|---|
| Product | Smart Unit Control Breaker |
| Model | OP63-VAP-X |
| SKU | VAP-X |
| Seller | OMNI Smart Home Company |
| Price checked | Rs 4,250 on 2 November 2026. Update this sentence if the price changes. |
| Poles and supply | 1P, single phase, 220V / 50Hz, as stated on the listing |
| Current | Stated up to 63A |
| Color and mount | White, DIN rail |
| Size shown on the drawing | 18 mm wide and 87 mm high. The side view is marked 67 mm, with 50 mm and 45 mm also shown. |
| Connection | WiFi. The listing also includes Bluetooth. “Wired” means it is wired into the distribution board. It is not an Ethernet breaker. |
| Apps listed | Tuya and Smart Life. The listing also names Alexa, Google Home, Google Nest, Home Assistant, and Samsung SmartThings. |
Protection and unit allowance
The listing and app screens name these protections. The numbers visible on the app screenshot are slider examples, not published ratings, so no fixed trip setting is stated here.
- Overvoltage and undervoltage protection, alarm, and delay
- Overcurrent and overload protection, alarm, and delay
- Overtemperature protection from the built-in sensor, alarm, and delay
- Closure count, adjustable closing time, electricity clearing, timing clearing, and automatic power-up
The prepaid function means you set or clear a unit allowance for this circuit. It does not mean Omni Smart or the distribution company recharges an official meter balance.

real picture of unit control device in pakistan
Where people use it
- One circuit in a home, apartment, shop, or office
- A rental or shared building where the owner wants a limit on a particular circuit
- A solar-supplied circuit where the owner wants unit settings for that circuit
Use a different product when the job is different:
- Import and export solar metering needs the bi-directional smart solar circuit breaker.
- A three-phase board needs the 3-phase smart circuit breaker.
- A 63A WiFi protection breaker without this unit-control function is the separate Tomzn TOB9-VAP.
- A geyser timer is a separate product: electric geyser timer.
More breakers and relay modules are in the circuit breaker and relay category.
Our experience selling it in Pakistan
Omni Smart has sold smart-home products in Pakistan since 2015. The badge on this page says 10+ years in business and 5,000+ installations. Those are company figures, not sales or installation counts for the OP63-VAP-X alone.
The breaker can be seen at the display centers: 312 Block J1, Johar Town, Lahore, and Suite 401, Giga Downtown, Islamabad. The store phone is 03-111-182-111. The site states Pakistan-wide cash on delivery. Warranty and returns follow the published warranty terms, rather than a separate promise invented for this breaker.
On 2 November 2026 this page showed 2 reviews, both 5 stars:
- Zikander Ali, 20 October 2025: “best for solar electricity and unit settings.” This supports using the unit allowance on a solar-supplied circuit. It does not show that this model measures electricity in both directions.
- attaullah, 18 March 2026: “Very good experience shopping here.” This comment is about shopping with Omni Smart, not a technical test of the breaker.
A licensed electrician should fit it on a DIN rail, on the load side of the circuit being limited, and after the board’s main protection. It must not be used to bypass the utility meter.

This breaker limits one circuit. It does not replace the electricity company’s meter.
اردو میں مختصر وضاحت
OP63-VAP-X ایک 63 ایمپیئر کا سنگل فیز یونٹ کنٹرول بریکر ہے۔ آپ اسی سرکٹ کے لیے یونٹ کی حد مقرر کرتے ہیں۔ حد پوری ہو جائے تو یہ بریکر وہ سرکٹ کھول دیتا ہے۔ یہ لیسکو، آئیسکو، کے الیکٹرک، فیسکو یا واپڈا کا آفیشل پری پیڈ میٹر نہیں ہے۔ رنگین اسکرین پر یونٹ، وولٹ، ایمپیئر، پاور اور درجہ حرارت دکھتے ہیں، اور کنٹرول Tuya یا Smart Life ایپ سے بھی ہو سکتا ہے۔
Common questions
What is a unit control device?
On this page it is the OP63-VAP-X, a 63A single-phase breaker that monitors one circuit and can open it after a set number of units.
What is the unit control device price in Pakistan?
The checked price on 2 November 2026 was Rs 4,250, with cash on delivery available across Pakistan. Confirm the live price before ordering.
Is a unit lock breaker the same product?
Yes. “Unit lock breaker,” “unit breaker,” and “unit control breaker” are search names used for this OP63-VAP-X listing.
Is this an official prepaid electricity meter?
No. It can limit units on its own circuit. The distribution company’s meter and bill remain in place.
Is this a 63 amp digital breaker?
The listing states a current up to 63A, with a color LCD. It is single pole and single phase, not a three-phase breaker.
Can it be used with solar?
One customer rated it for solar electricity and unit settings. For import and export measurement, use the bi-directional solar breaker linked above.
Which app controls it?
Tuya and Smart Life. The listing also names Alexa, Google Home, Google Nest, Home Assistant, and Samsung SmartThings. There is no Ethernet port.
