8 in 1 Smart WiFi MCB Breaker with ELCB Earth Leakage Protection and Auto Reclosing Function (Model SCB-EM-22)

8 in 1 Smart WiFi MCB Breaker with ELCB/RCCB Earth Leakage Protection & Sub Meter (Model SCB-EM-22)

Experience next-level electrical safety and smart monitoring with the 8 in 1 Smart WiFi MCB Breaker, now upgraded with RCCB (Residual Current Device) protection, temperature sensor, and a colored LCD display for real-time visibility.
Designed for Pakistani homes, offices, and commercial buildings, it offers smart control, accurate sub-metering, and advanced protection — all in one compact device.

timer function supported switch with app

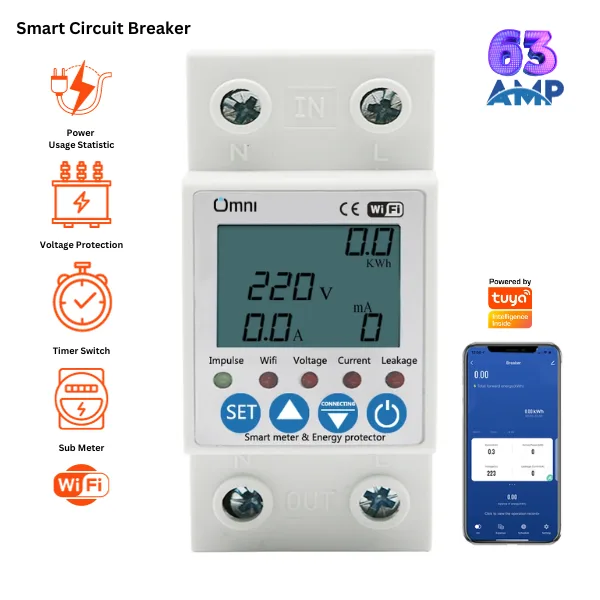

Real-time data display of the OmniCloud Smart WiFi MCB Breaker with built-in ELCB and RCCB protection. Shows live voltage, current, and leakage readings with Tuya Smart Life app integration.

⚙️ Key Features for smart MCB, ELCB/RCCB

• 8-in-1 Smart WiFi Circuit Breaker – Combines smart MCB, ELCB/RCCB, and energy metering functions in one intelligent system.

• RCCB Earth Leakage Protection – Detects current leakage from 10mA to 100mA and instantly cuts power to prevent electric shock or fire hazards.

• Temperature Sensor – Monitors internal heat and automatically shuts off to avoid overheating.

• Colored LCD Display – Displays voltage, current, leakage, and power consumption in real time with clear color-coded data.

• Smart Sub-Meter Function – Track power usage for individual rooms, tenants, or devices for accurate energy billing or monitoring.

• Over/Under Voltage Protection – Automatically disconnects when unsafe voltage levels are detected.

• Auto Reclosing Function – Automatically restores power after stable conditions return, reducing manual resets.

• Tuya / Smart Life App Support – Full remote control via smartphone, allowing you to view power data, schedule timers, and configure safety limits.

• Voice Assistant Integration – Works with Alexa and Google Assistant for voice-based control and monitoring.

All sides of the OmniCloud 8-in-1 Smart WiFi MCB Breaker with RCCB and ELCB protection – detailed view of input, output, and wiring terminals.

⚡ How It Works smart ELCB Smart earth leakage breaker

The breaker constantly monitors voltage, current, and leakage on your circuit.
If a fault occurs — such as leakage to earth, voltage fluctuation, or overheating — the system immediately trips, cutting power.
Once conditions return to normal, it automatically reconnects.
Through the Tuya Smart Life App, you can:

• View live power data (kWh, V, A, mA)

• Set timer schedules for daily use

• Enable remote on/off switching

• Receive mobile alerts for overload or leakage

Practical Scenarios

• Apartments & Shared Buildings: Use as a smart sub-meter to track and bill tenants’ electricity usage separately.

• Smart Homes: Integrate with Alexa or Google Home to automate lighting, heating, or appliances safely.

• Commercial Spaces: Prevent downtime with auto-reclosing and leakage protection for offices, hostels, or rental units.

• Workshops & Industrial Areas: Protect sensitive machinery from voltage drops and overcurrent with precise control.

Product and packaging display of the OmniCloud Smart WiFi Reclose Protector with built-in RCCB and ELCB protection. Includes box, manual, and high-quality branding image for Pakistan market.

Technical Specifications for smart elcb earth leakage breaker

Why Choose OmniCloud’s 8-in-1 Smart Breaker

• Trusted by Pakistani electricians and smart home professionals

• Built for local voltage fluctuations and power conditions

• Easy to install on existing DIN rail panels

• Ideal for residential, commercial, and Airbnb-style smart properties

Model: SCB-EM-22

Smart WiFi MCB + ELCB/RCCB + Sub Meter + Auto Reclosing | OmniCloud Solutions Pakistan

Check Hourly, daily monthly and yearly power usage.

Best usage of smart circuit breaker: Air conditioner, Whole house load, heavy industrial machinery

high-power appliances, devices without on/off switches

• Energy monitoring, Set power unit price, can calculate house device power consumption

• Energy Monitoring Circuit breaker
• Model: SCB-EM-22
• Smart electric sub meter
• Prepaid electricity meter
• Real active power display on the app
• AC 220 Volt
• 2 pole single phase smart circuit breaker with neutral
• LCD Display Circuit Breaker
• Din Rail Size
• Tuya Circuit Breaker
• Smart Life Mobile Application
• Rated current (A) 1 – 63 (Adjustable)
• Rated frequency (Hz) 50/60
• Rated power (W) 63A: Resistivity load ≤13000W; Inductive load ≤6000W
• Power consumption (W) <2
• Ambient temperature -25~+60°C
• Environmental humidity <95%
• Dimension 36×85×49mm
• WiFi Re-closing Protector
• Remote Control ON/OFF
• APP can read kWh, R.M.S current, voltage, active power
• LCD display, Real-time display of Voltage, Current, Active Power, Reactive Power, power factor, frequency, total Energy kWh
• Power Supply: 90-300V AC 50/60Hz
• Voice Control Smart Circuit Breaker
• Google Assistant Control
• Alexa Control
• Reconnect time (delay on time): 1s-500s (default: 30s)
• Electric leakage protection
• Smart Voltage meter WIFI
• Smart Ammeter WIFI
• Digital electronic timer switch with daily and weekly programs

Single Phase 2p  single phase adjustable voltage and load max 63A WIFI Smart Energy Meter Kwh Monitoring Circuit breaker Timer with voltage current protection

WIFI Control Smart Circuit breaker and smart electric sub meter Features

1. Under voltage protection,
2. Overload protection
3. Earth leakage protection, delay protection,
4. Energy and electricity metering
5. Timer setting switch.
6. Remote control can be realized only when the protection switch of the remote control is in the state of networking. “On” and “Off” set the
   current, voltage, and leakage to limit electricity consumption through the parameters of the mobile phone APP.
7. This product does not have short circuit protection, please use it together with the air breaker, to prevent the line or equipment from short circuit fire
   caused the unnecessary loss.
8. When the device is not connected to the network, it can be connected to the device through Bluetooth of a mobile phone within 20
   meters to realize remote control “On” and “Off”.
9. Product protector switches width 36mm, 2 placeholders.
10. Without the need for remote control, the device can also realize automatic closing, over-voltage, under-voltage, and leakage can also
    play protection.
11. Product parameter setting, current 1~63A can be set, over-voltage 250~300V, under voltage 150~190V, leakage 10~99mA (can
    close the leakage function), the delay time of 5~90 seconds can be set (can only be set on the switch).
12. Product switch setting long press the setting button for three seconds to enter the setting procedure, short press the query, the
    leakage will not automatically close after three times, the display is OFF

Note: This switch cannot be used as a main breaker. Please install a miniature circuit breaker with overload and short-circuit
protection function before this product.

Over Volt Under voltage protection Auto Circuit Breaker.

Keep your electronics safe with this smart circuit breaker. You can set min and max voltage range and it will auto close in case of out of range. This can be used as an Over Under Voltage Protection relay. It is best for Over-voltage protection devices for homes in Pakistan. Adjustable Voltage Protector can work at the preset voltage and save your electrical devices.

Auto Close Circuit breaker for out-of-range voltage protection.

Adjustable Voltage Protector has a wide range of 1 – 63 amp and can be preset to protect your home / electrical appliance/geyser/motor/water heating/air conditioner / heavy machinery / medical equipment and can be used as an industrial Automation device.

It has a built-in timer and schedule function to auto-start and stop as per your requirement. It can also work with humidity and temperature sensor to automatically work when required.

Smart electric sub meter with Mobile application

Large LCD display Din rail Size wifi ELMCB Breaker in Pakistan

Ideal for: Homes, businesses, factories, solar systems, and commercial buildings.

Package Includes:

• 1 x WiFi Smart Circuit Breaker
• User Manual
• Mobile App Setup Guide

Upgrade to Smart Energy Management Today!

WIFI Breaker with Large LCD and Tuya Smart Life Mobile Application
