Smart Circuit Breaker with WIFI mobile application to check usage in real-time and make timer schedule. Smart Electric Sub meter with temperature sensor and WIFI mobile app

Large LCD Display to see real-time energy usage. Over and under voltage protection. Limit Voltage for safety as per requirement. Set schedule for water heater or industrial machinery. Heavy duty to run the maximum load. This electric circuit breaker and Electric sub meter can work as WiFi Re-closing Protector.

Best circuit breaker for usage with a solar system. Check real-time electricity usage and also make a schedule to turn it on and off. check usage on Android/ IOS mobile applications from anywhere in the world. Compatible with Google Assistant and Amazon Alexa.Set Max and Min voltage.

Best circuit breaker for usage with a solar system. Check real-time electricity usage and also make a schedule to turn it on and off. check usage on Android/ IOS mobile applications from anywhere in the world. Compatible with Google Assistant and Amazon Alexa.Set Max and Min voltage. This can be used to track energy consumption in solar electric panels.

COMPLETE CONTROL. Use your smartphone to control appliances, such as heaters, AC devices,

and lights, from anywhere, whether from your couch or another city, ideal for hard-to-reach and

circuit breaker smart control

Check Hourly, daily monthly and yearly power usage.

best usage of smart circuit breaker: Air conditioner, Whole house load, heavy industrial machinery

high-power appliances, devices without on/off switches

• Energy monitoring, Set power unit price, can calculate house device power consumption

• Energy Monitoring Circuit breaker
• Model: SCB-EM-22
• Smart electric sub meter
• Prepaid electricity meter
• Real active power display on the app
• AC 220 Volt
• 2 pole single phase smart circuit breaker with neutral
• LCD Display Circuit Breaker
• Din Rail Size
• Tuya Circuit Breaker
• Smart Life Mobile Application
• Rated current (A) 1 – 63 (Adjustable)
• Rated frequency (Hz) 50/60
• Rated power (W) 63A: Resistivity load ≤13000W; Inductive load ≤6000W
• Power consumption (W) <2
• Ambient temperature -25~+60°C
• Environmental humidity <95%
• Dimension 36×85×49mm
• WiFi Re-closing Protector
• Remote Control ON/OFF
• APP can read kWh, R.M.S current, voltage, active power
• LCD display, Real-time display of Voltage, Current, Active Power, Reactive Power, power factor, frequency, total Energy kWh
• Power Supply: 90-300V AC 50/60Hz
• Voice Control Smart Circuit Breaker
• Google Assistant Control
• Alexa Control
• Reconnect time (delay on time): 1s-500s (default: 30s)
• Electric leakage protection
• Smart Voltage meter WIFI
• Smart Ammeter WIFI
• Digital electronic timer switch with daily and weekly programs

6 in 1 Smart Circuit Breaker

Single Phase 2p  single phase adjustable voltage and load max 63A WIFI Smart Energy Meter Kwh Monitoring Circuit breaker Timer with voltage current protection

smart circuit breaker multi function

WIFI Control Smart Circuit breaker and smart electric sub meter Features

1. Under voltage protection,
2. Overload protection
3. Earth leakage protection, delay protection,
4. Energy and electricity metering
5. Timer setting switch.
6. Remote control can be realized only when the protection switch of the remote control is in the state of networking. “On” and “Off” set the
   current, voltage, and leakage to limit electricity consumption through the parameters of the mobile phone APP.
7. This product does not have short circuit protection, please use it together with the air breaker, to prevent the line or equipment from short circuit fire
   caused the unnecessary loss.
8. When the device is not connected to the network, it can be connected to the device through Bluetooth of a mobile phone within 20
   meters to realize remote control “On” and “Off”.
9. Product protector switches width 36mm, 2 placeholders.
10. Without the need for remote control, the device can also realize automatic closing, over-voltage, under-voltage, and leakage can also
    play protection.
11. Product parameter setting, current 1~63A can be set, over-voltage 250~300V, under voltage 150~190V, leakage 10~99mA (can
    close the leakage function), the delay time of 5~90 seconds can be set (can only be set on the switch).
12. Product switch setting long press the setting button for three seconds to enter the setting procedure, short press the query, the
    leakage will not automatically close after three times, the display is OFF

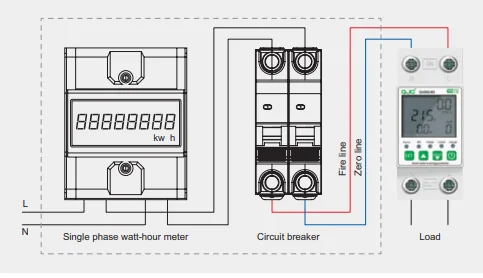

WIFI Circuit Beaker Wiring

Note: This switch cannot be used as a main breaker. Please install a miniature circuit breaker with overload and short-circuit
protection function before this product.

Over Volt Under voltage protection Auto Circuit Breaker.

Keep your electronics safe with this smart circuit breaker. You can set min and max voltage range and it will auto close in case of out of range. This can be used as an Over Under Voltage Protection relay. It is best for Over-voltage protection devices for homes in Pakistan. Adjustable Voltage Protector can work at the preset voltage and save your electrical devices.

Auto Close Circuit breaker for out-of-range voltage protection.

Adjustable Voltage Protector has a wide range of 1 – 63 amp and can be preset to protect your home / electrical appliance/geyser/motor/water heating/air conditioner / heavy machinery / medical equipment and can be used as an industrial Automation device.

It has a built-in timer and schedule function to auto-start and stop as per your requirement. It can also work with humidity and temperature sensor to automatically work when required.

Smart electric sub meter with Mobile application

Large LCD display Din rail Size

Breaker with Large LCD and Tuya Smart Life Mobile Application

Timer Switch best price in Pakistan
